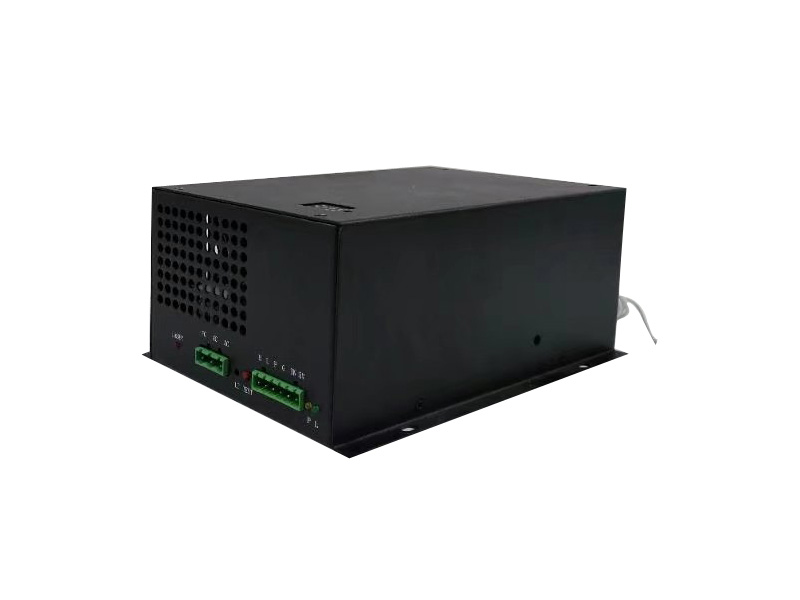

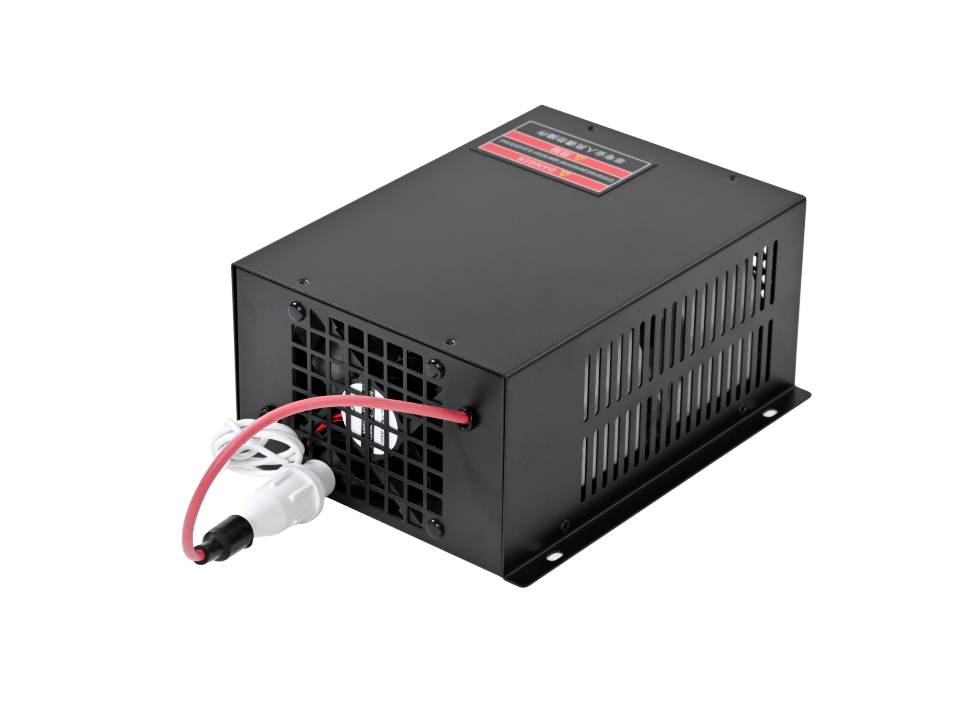

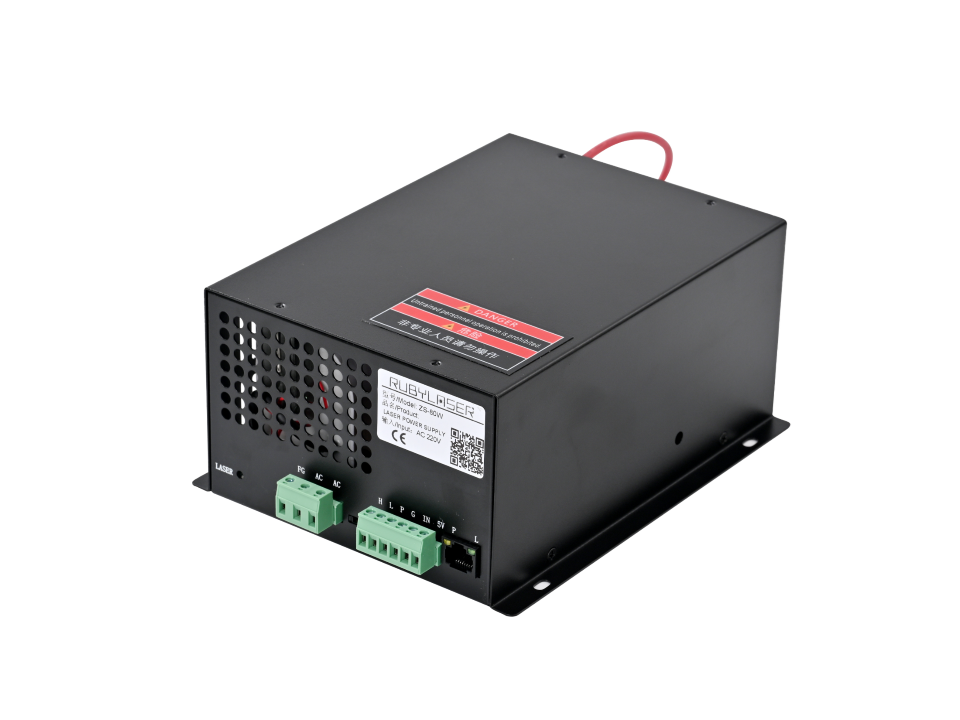

ZR-80WE CO2 laser power supply

Feature：

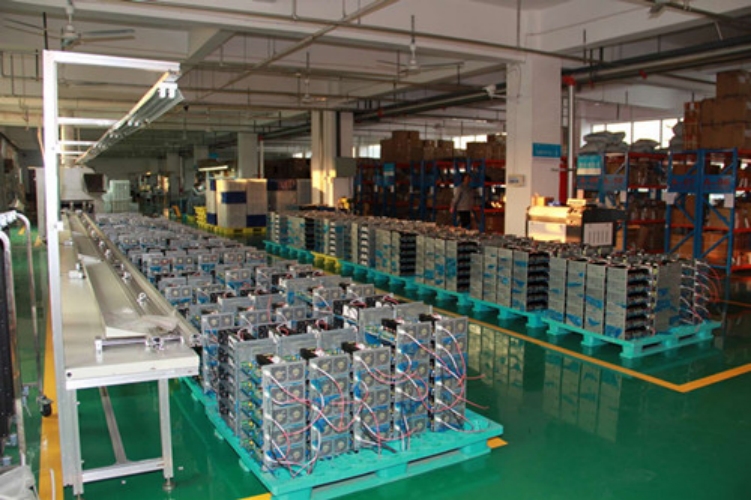

1. Each 80Watt laser power supplies before selling will go through the aging check:

(1) sustain 10 hours at temperature 60 Degrees Celsius under full-load condition;

(2) 500 times on/off check for 7 seconds.

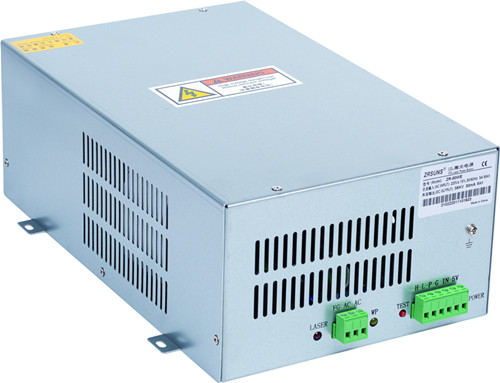

2. The CO2 laser power supplies have H/L/P/G/IN/5V control signal interface，The upper cover and bottom shell are made of aluminum Casing is galvanized sheet.

3. Aging check before stored in warehouse:

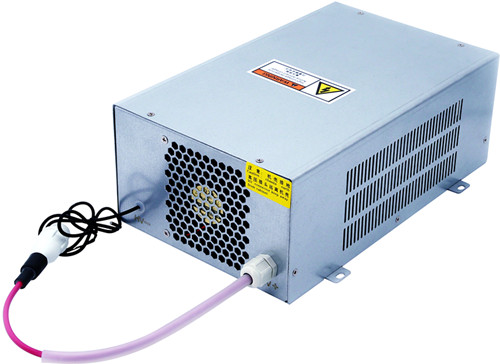

4.This two fans laser power supplies has RED TEST button to easily figure out CO2 power supplies or CO2 laser tube’s failure. It is very easy and simple to remove trouble.

5. This 80Watt laser power supplies is used to drive most brands 1200-1450mm CO2 laser tube. The two fans laser power supplies use zero-current half-bridge soft-switch circuit to make sure the CO2 laser power supplies have high efficiency and fast response speed.

6. This high voltage laser power supplies’s control interface is applicable to high/low level signal. TTL level is to control the on/off of the laser power with a protective switch to check water-flow and ventilation.

7. Input analog signal(0~5V) or PWM is used to control the output laser power on this 80Watt laser power supplies.

Specification：
