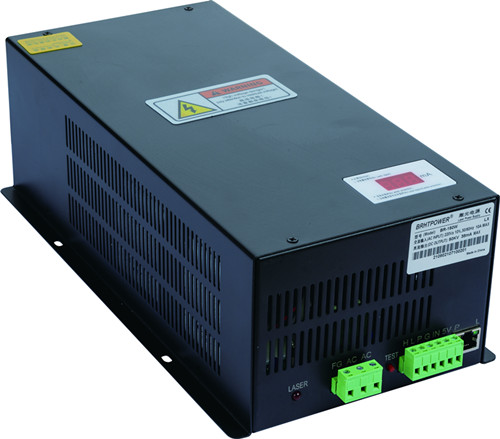

BR-130W CO2 laser power supply

Feature：

1.The 220/110V  CO2 power supply's control is applicable to high/low level signal. TTL level is to control the on/off of the laser power with a protective switch to check water-flow and ventilation.

2.The 130W  CO2 power supply has RED TEST button to easily figure out CO2 power supplies or CO2 laser tube's failure. It is very easy and simple to remove trouble.

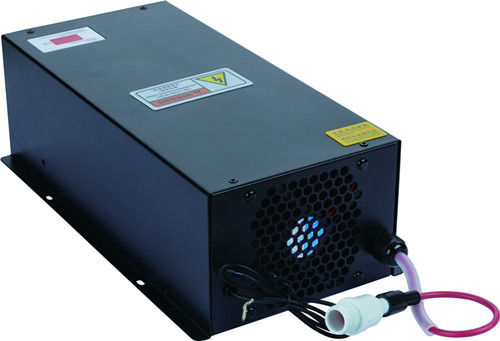

3.This130W CO2 power supply is equipped with two cooling fans. Better heat dissipation can protect the internal electronic components of this power supply

4. The 220/110V CO2 power supply has H/L/P/G/IN/5V control signal port，The upper cover and bottom shell are aluminum shell is galvanized sheet.

5.Input analog signal(0~5V) or PWM is used to control the output laser power on this 130W  CO2 power supply.

6.The 130W CO2 power supply can match with EFR,Yongli,SPT, Weiju and other factories'160-165cm 130W sealed glass type CO2 laser tube. The 220/110V CO2 power supply uses zero-current half-bridge soft-switch circuit to make sure the CO2 power supply on laser cutter has high efficiency and fast response speed.

7.The 130W CO2 power supply can use an external LCD module. It can display common fault codes, output current and working status. It is helpful for operators to understand the working state of 220/110V  CO2 power supply and solve problems quickly. In addition, the output current can also be changed by the rotating potentiometer of the LCD module.

8.Each CO2 power supply on laser cutter  before selling will go through the aging check:

(1) sustain 10 hours at temperature 60 Degrees Celsius under full-load condition;

(2) 500 times on/off check for 7 seconds.

9.The CO2 power supply on laser cutter is well grounded, which can ensure the safety of operators. At the same time, the 220/110v  CO2 power supply also has an open circuit protection function, which allows the CO2 power supply on laser cutter to work for a short time in the open circuit state.

Specification：
